CFG Exposed-Dual-Clutch and Internal-Single-Brake Module

Voltage: 24 VDC
Torque Selection: 11~175 Nm
CFG Exposed-Dual-Clutch and Internal-Single-Brake Module

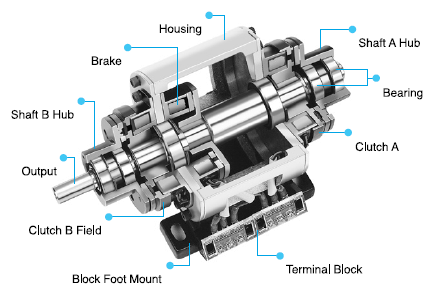

CFG Dual Clutch and Single Brake Assembly


Open style with two input points and one output point.

  • Dual clutch rotor and brake are fixed on the same output shaft, and a dual clutch bearing cam is attached to the output shaft. When the right side is energized the right bearing cam drives the output shaft, and when current to the right side is the bearing cam and output shaft separate. When the brake is energized the output shaft stops. When the left side is energized the left bearing cam drives the output shaft, and when power to the left side is cut the left bearing cam and the output shaft and precision positioning applications.
  • This unit can be used for positioning and stopping in two-speed applications as well as high frequency and bi-directional rotation and precision positioning applications.


CDD 雙電磁離合器組










  • Metal finishing systems: extrudes, wire stretchers, presses, welders, steel wire retractors, cutters, pipe makers, wire winding machines
  • Machine tool systems: lathes, millers, steel extrudes, CNC lathes, specialized machinery
  • Transportation equipment: hoists, feeders, conveyors, rollers, winders
  • Paper-making systems: bag-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines
