Structure

icon_01.gif Basic Design and Operation    icon_01.gif Structure    icon_01.gif Examples of installation & Application





1. While the current is cut off, the magnetic force of the permanent magnet engages an armature plate and produces rated torque.

2. While a coil is energized, upon the excitation voltage reaches a certain level of reading, the magnetic force of the permanent magnet will be neutralized by the reverse pole of magnetic force generated from a coil. The induction force between an armature plate and the yoke will also disappear which releases the brakes.

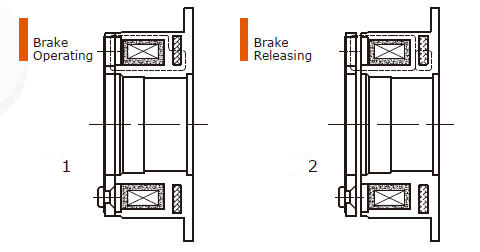

 icon-02.gifStructure


 icon-02.gifOperating Chart
