Structure

icon_01.gif Basic Design and Operation   icon_01.gif Structure   icon_01.gif Examples of installation & Application





The basic layout of the powder-type clutch is shown in Figure 1. The primary driver (input side) and the friven element (output side) are located on aligned cylinders and separated by a gap filled with magnetic powder. The two structures are firmly supported by bearings and can turn dependently.
The powder space is filled with highly magnetized iron powder, with magnetic coils on the outer rim which achieve fast magnetization.

When the primary driver turns under non-ed conditions, centrifugal force pushes the magnetic power onto the work surface of the primary driver so that the driver and driven components cannot make contact, and friction between the powder and the friver allow transmission of torque. This type of clutch is also a friction clutch which uses magnetic powder as an interface. In addition, if the output side of the unit is fixed in place it can also act as a powder-type brake.

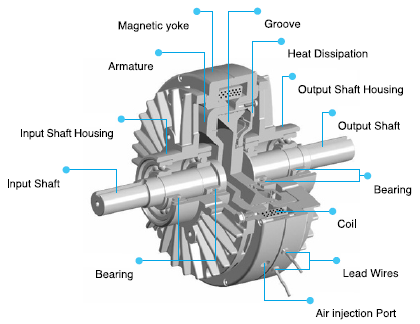

icon-01.gifZKC Basic Structure





icon-01.gif ZKB Basic Structure
