Examples of Installation & Application

icon_01.gif Basic Design and Operation   icon_01.gif Structure   icon_01.gif Examples of installation & Application



icon-02.gifZKC Examples of installation

       item-01.gifInsert tray assembly into the installation board to hold it in place.



       item-02.gifThe spring coupler must be used to main contact between the clutch shaft and the load shaft. In addition, the alignment and angles between shafts mush be maintained with the allowable range for spring coupler.



       item-03.gifStay within permitted load ranges when installing a belt pan.



       item-04.gifInstallation plates must be installed at either end of the shaft for the ZKC005AA.

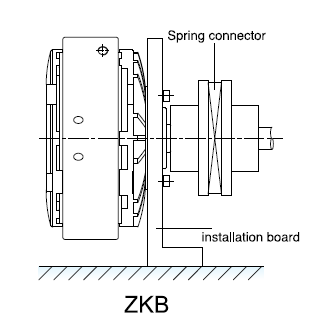

icon-02.gif ZKB Examples of installation

        item-01.gif Insert tray assembly into the installation board to hold it in place.



        item-02.gifThe spring coupler must be used to main contact between the clutch shaft and the lad shaft. In addition, the alignment and angles between shafts mush be maintained with the allowable range for spring coupler.



        item-03.gifStay within permitted load ranges when installing a belt pan.

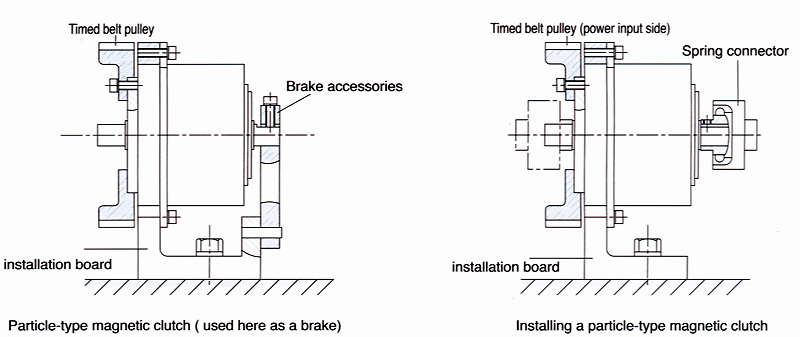

 icon-02.gifZKY Examples of installation

        item-01.gifInstallation environment

              Installation flange must be firmly attached to the installation board.



        item-02.gifDriving and driven shaft must be connected by a flexible clutched factors such as shaft concentricity, right angles, etc., must be within the specified limits of the clutch.



       item-03.gifWhen installing a belt pan, stay within permitted load ranges.



       item-04.gif Minimum surface area for an installed heat dissipation panel is 350cm2




 icon-02.gifZKA Examples of installation

        item-01.gifInstallation flange must be firmly attached to the installation board.



        item-02.gifDrive shaft and load shaft must be connected by a spring coupler, and the alignment and angles must be correct.



        item-03.gifWhen installing a belt pan, stay within permitted load ranges.



        item-04.gifMinimum surface area for an installed heat dissipation panel is 350cm2





icon-02.gif ZKX Examples of installation

        item-01.gifThe front of bearing must be firmly attached to the installation board.



        item-02.gifDrive shaft and load shaft must be connected by a spring coupler, and the alignment and angles between shafts must be maintained with the allowable range for spring coupler.



        item-03.gifIf the load shaft is hold by the internal bearing inside the brake, please prevent it from being hold by only 3 points. (there are 2 internal bearing inside the brake)
