Structure

icon_01.gif Basic Design and Operation    icon_01.gif Structure    icon_01.gif Examples of installation & Application




Torque is established by a relative resistance force generated by permanent magnets on two base plates and the hysteresis plate on the shaft. The output torque adjustment can be controlled with different variations in magnet angles.

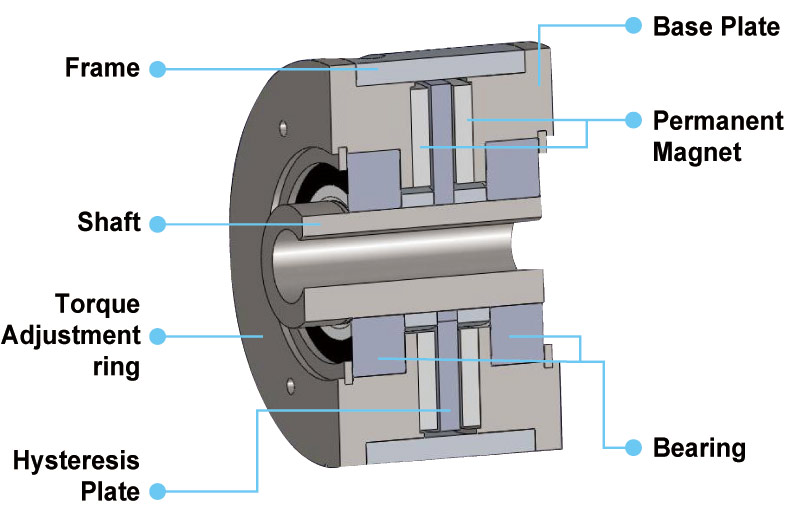

icon-02.gif CHT Structure
