icon-02.gifInitial Torque:

Although armatures, rotors, and brake faces are machined or even lapped as flat as possible at manufacture, peaks and valleys remain on the surfaces. When a new clutch or brake engages, the contact area is initially confined to the peaks on the mating surfaces. This smaller contact area means torque can be less than the unit’s static torque rating.To get the full torque, users need to burnish mating surfaces. Burnishing cycles the unit, letting those initial peaks wear down so there is more surface contact between the mating faces. These cycles depending on the amount of torque required, should be lower in inertia, speed, or both, than the end application. Normal operations wear down contact surfaces as burnishing does. Every time a clutch or brake engages during rotation, a certain amount of energy is transferred as heat, please also note that the heat can not be too high.
Although armatures, rotors, and brake faces are machined or even lapped as flat as possible at manufacture, peaks and valleys remain on the surfaces. When a new clutch or brake engages, the contact area is initially confined to the peaks on the mating surfaces. This smaller contact area means torque can be as much as 50%~70% less than the unit’s static torque rating.

To get the full torque, users need to burnish mating surfaces. Burnishing cycles the unit, letting those initial peaks wear down so there is more surface contact between the mating faces. These cycles depending on the amount of torque required, should be lower in inertia, speed, or both, than the end application. Normal operations wear down contact surfaces as burnishing does. Every time a clutch or brake engages during rotation, a certain amount of energy is transferred as heat, please also note that the heat can not be higher than 80℃.

icon-02.gifOperating Guidelines:

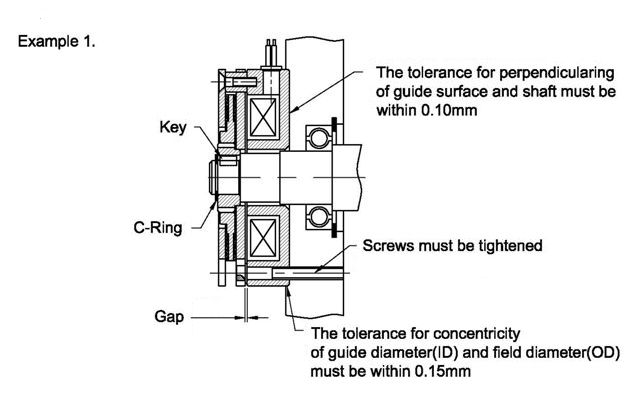

item-01.gif  Please refer to h6 (metric) for the designation of shaft tolerance.

item-02.gif  Please do not knock hub for brake installation.

item-03.gif Please keep friction disc from oil or it would cause low torque

item-04.gif Be sure that brakes are supplied with correct power.
