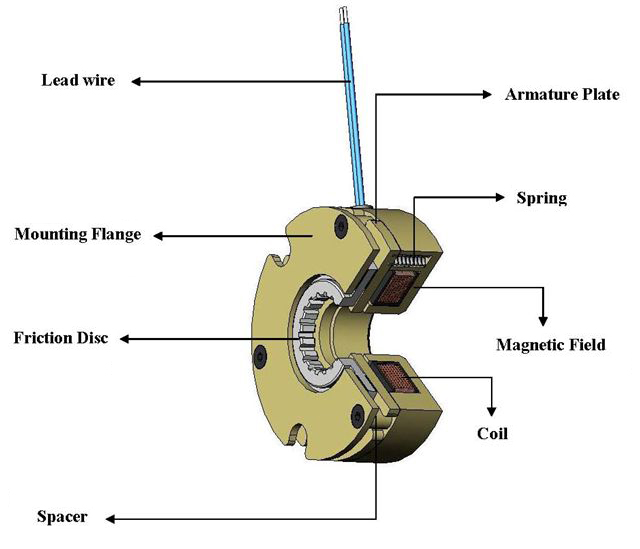

Structure

icon_01.gif Basic Design and Operation    icon_01.gif Structure    icon_01.gif Examples of installation & Application



icon-02.gifDisengaged:


When power is on, the coil will be energized to exert the magnetism and pull the armature plate down to compress springs. Meanwhile, the friction disc in the brake will be disengaged then shaft can move.

icon-02.gifEngaged:

When power is off, magnetism in the coil will disappear and the armature plate will be rebounded by springs. At the same time, the friction disc in the brake will be engaged to hold the shaft.
