PB2 Permanent Magnet Brake with Short Hub
Torque Selection: 0.02~140 Nm (Static Holding)
Applications: Robotics, servo motors, precise positioning
Braking force of PERMANENT MAGNET BRAKE is generated by a permanent magnet instead of a spring, thus it is different from a general type of spring-applied safety brake. The permanent magnet brake is composed of a spring plate and an armature, so there is no backlash on the moment of braking while power is off and no drag torque while idling during the current is supplied.

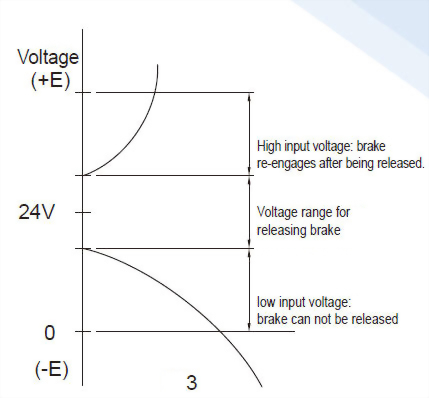

- Operating Chart
