MG1 Miniature Electromagnetic Brake- Flange Mounted With Hub
Torque Selection: 0.6~4.5 Nm
Applications: folding machines, ATM, copy machines, automatic doors

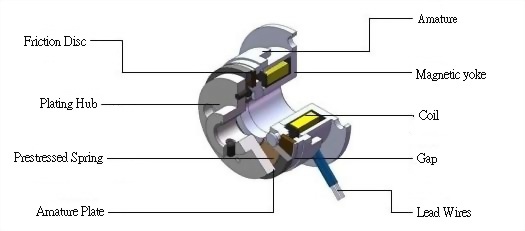

Micro electromagnetic clutches and brakes are suitable for dry running, which transmit and stop the torque through friction. With DC voltage supplied, the torque is transmitted without backlash. Due to the coordination of prestressed plating spring and armature plate, a release free of residual torque is ensured.
This series of micro electromagnetic clutches and brakes can be installed in any mounting position and hardly need maintenance. Depending on actual operation, the air gap can be checked and adjusted to achieve required characteristics if necessary. Micro electromagnetic clutches and brakes are widely applied for office equipments and automatic machines, such as folding machines, ATM, copy machines, automatic door ...so on.
- Non-asbestos：Non-asbestos materials are used for friction disc
- No residual magnetism：Using prestressed plating spring to ensure that there is no residual magnetism when clutch/brake is released.
- Small-size design：Miniaturized, high-torque and light design is easy for customers to install.
- Quick response：Quick time for torque transmitting and releasing. High accuracy for starting and stopping.
- Excellent heat dissipation：Suitable for high-frequency using, can increase work efficiency.
- Zero backlash
